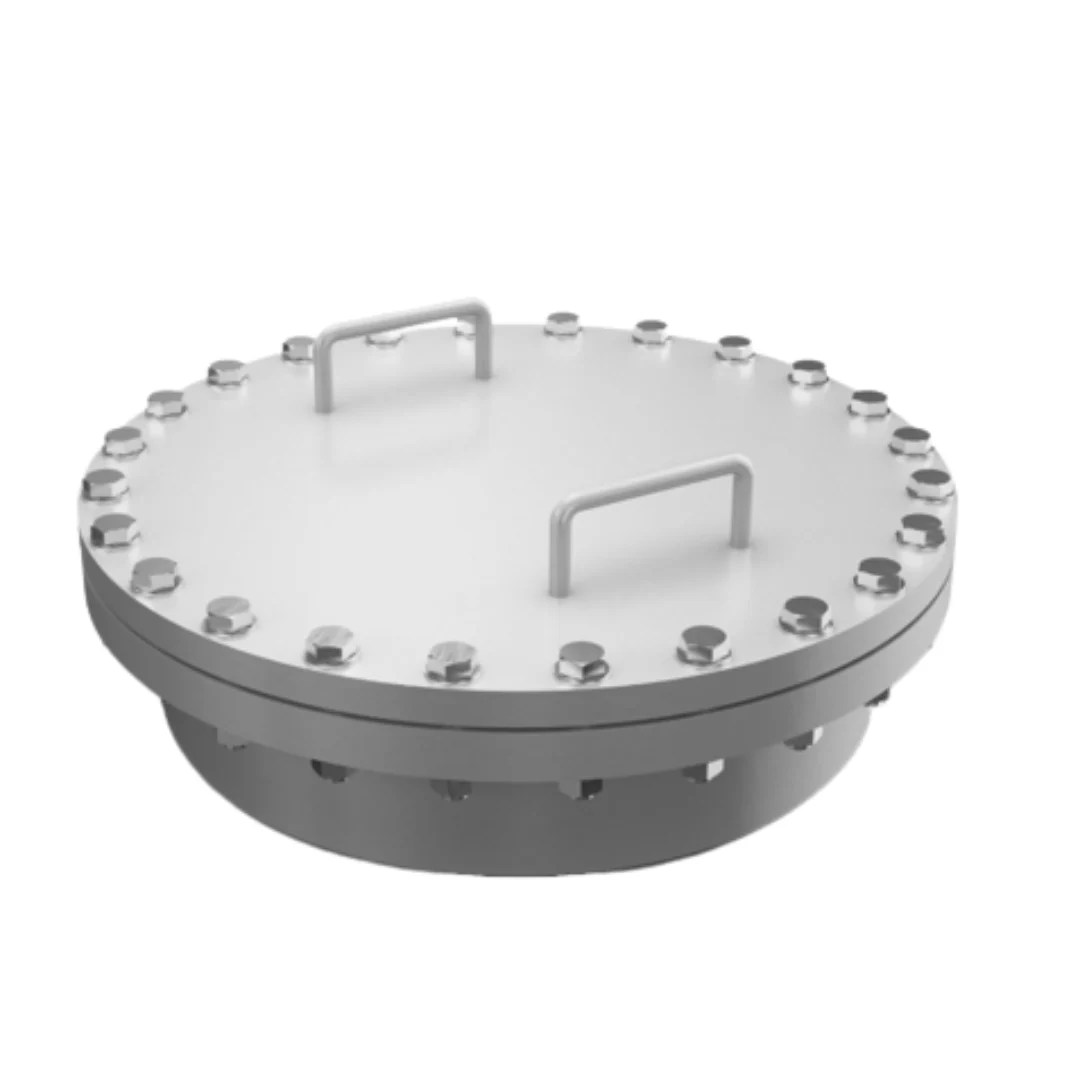

DIN Cover acc. DIN 28124 Part 2
Pressure Range
8/-1 bar
Lead Time
2-Week
Compliance
ASME/PED
Priority Components
Operating Temperature
Up to 280°C
Design Codes
AD 2000 & EN 13445-3
Material Grades
1.4404 / 1.4301
Regulatory Compliance
PED 2014/68/EU
Engineered to DIN 28124 Part 2 Standards
Our DIN Covers manufactured in accordance with DIN 28124 Part 2 provide standardized pressure vessel access for industrial process equipment. Designed to meet internationally recognized dimensional and performance requirements, these covers ensure reliable sealing, easy installation, and compatibility with standardized vessel configurations. Manufactured from high-quality stainless steel, they offer long service life and dependable operation across pharmaceutical, chemical, food, beverage, and process industries.
Vacuum Tightness
Guaranteed -1 bar performance for standardized pressure vessel applications.
Rapid Maintenance
Standardized design enables efficient installation, inspection, and maintenance.
Quick Specs
Custom Configuration
Up to 280°C
- Silicone (FDA compliant)
- EPDM (Chemical resistance)
- FKM/Viton (High temp)
Opening Aid
- Standard hinge
- Spring-assisted opening
- Swivel arm assembly
Surface Finish
- Pickled / Passivated
- Mirror Polished (Ra < 0.4µm)
- Electropolished
Handle Types
- Stainless Steel Wing Nut
- Plastic Star Grip
- Handwheel for high torque
Custom Configuration
Standard specifications based on EN 10217-7 neck piping.
| NW (SIZE) | PRESSURE / TEMP | SCREWS (QTY) | LID THICKNESS | NECK THICKNESS | WEIGHT (KG) |
|---|---|---|---|---|---|
| 200 | 8 bar / 150°C | 4x M16 | 12.0 mm | 6.0 mm | 18.5 |
| 300 | 6 bar / 200°C | 6x M16 | 15.0 mm | 8.0 mm | 26.2 |
| 400 | 5 bar / 200°C | 8x M16 | 18.0 mm | 10.0 mm | 42.8 |
| 500 | 4 bar / 200°C | 10x M20 | 20.0 mm | 12.0 mm | 68.4 |
